Atraumatic tipThe tapered tip helps avoid arterial injury during the procedure.
Pt-Ir markersTwo radiopaque markers at the proximal and distal ends of the balloon.
BalloonDiameter 1.25–5.00 mm, length 6–49 mm; nominal pressure 6 atm.
Hydrax coatingHydrophilic coating minimises friction in tortuous anatomy.
HypotubeThe proximal hypotube gives pushability; rapid-exchange catheter, 142 cm.
Balloon catheter
RAMA

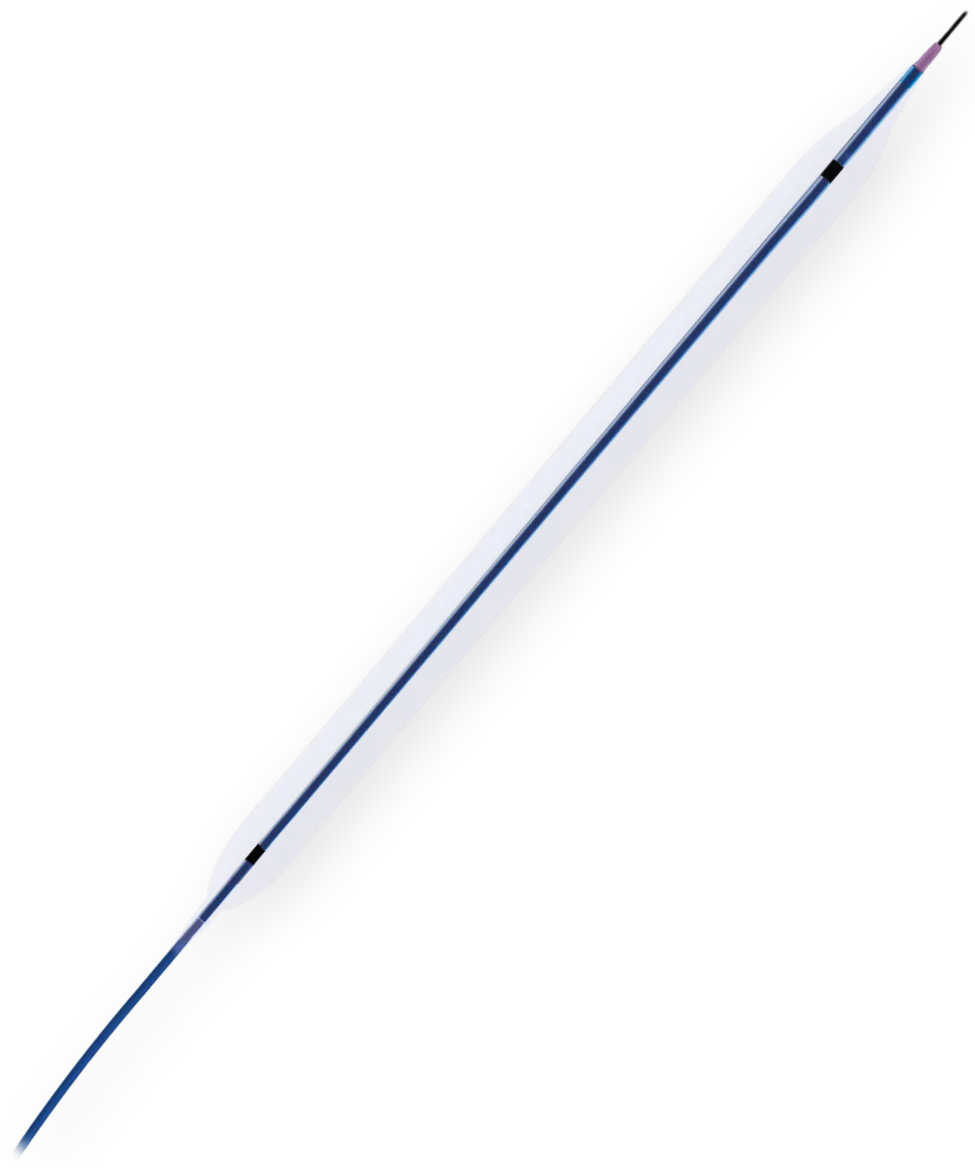

Coronary balloon catheter with hydrophilic coating
1–5Diameter, mm
5–49Length, mm
Reg. cert. РЗН 2021/13781
Drag to rotate · schematic model
Description
The RAMA coronary balloon catheter with hydrophilic coating is a rapid-exchange (RX) catheter.
The distal part of the catheter is a coaxial dual-lumen design: the inner lumen takes the guidewire, the outer lumen inflates and deflates the balloon.
The catheter gives precise distal control through smooth force transmission, combining trackability with distal flexibility.
The proximal part is a hypotube joined to a transition tube. The hypotube gives pushability and lets contrast flow freely into and out of the balloon during inflation and deflation.
Two radiopaque markers sit at the proximal and distal ends of the balloon.
The distal part carries a Hydrax hydrophilic coating that minimises friction when crossing difficult lesions in tortuous anatomy.
The atraumatic tapered tip helps avoid arterial injury during the procedure.
A Luer hub at the proximal end connects accessories.
Contraindications apply. Read the instructions for use or consult a specialist.
Size finder
Diameter, mm
Length, mm
Your request
Add sizes of this and other devices, stents and catheters alike, and send them as one request. The list is kept only in your browser.
485 sizes in the range. Ask a manager about availability.
Size range
in the rangenot made
| Ø, mmREF КБК 14 142 … | Length, mm | |||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 6 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | 35 | 36 | 37 | 38 | 39 | 40 | 41 | 45 | 49 | |
| 1.00 | 100 005REF КБК 14 142 100 005 | not made | 100 008REF КБК 14 142 100 008 | 100 009REF КБК 14 142 100 009 | 100 010REF КБК 14 142 100 010 | 100 011REF КБК 14 142 100 011 | 100 012REF КБК 14 142 100 012 | 100 013REF КБК 14 142 100 013 | 100 014REF КБК 14 142 100 014 | 100 015REF КБК 14 142 100 015 | 100 016REF КБК 14 142 100 016 | 100 017REF КБК 14 142 100 017 | 100 018REF КБК 14 142 100 018 | 100 019REF КБК 14 142 100 019 | 100 020REF КБК 14 142 100 020 | 100 021REF КБК 14 142 100 021 | 100 022REF КБК 14 142 100 022 | 100 023REF КБК 14 142 100 023 | 100 024REF КБК 14 142 100 024 | 100 025REF КБК 14 142 100 025 | 100 026REF КБК 14 142 100 026 | 100 027REF КБК 14 142 100 027 | 100 028REF КБК 14 142 100 028 | 100 029REF КБК 14 142 100 029 | 100 030REF КБК 14 142 100 030 | 100 031REF КБК 14 142 100 031 | 100 032REF КБК 14 142 100 032 | 100 033REF КБК 14 142 100 033 | 100 034REF КБК 14 142 100 034 | 100 035REF КБК 14 142 100 035 | 100 036REF КБК 14 142 100 036 | 100 037REF КБК 14 142 100 037 | 100 038REF КБК 14 142 100 038 | 100 039REF КБК 14 142 100 039 | 100 040REF КБК 14 142 100 040 | not made | not made | not made |
| 1.10 | 110 005REF КБК 14 142 110 005 | not made | 110 008REF КБК 14 142 110 008 | 110 009REF КБК 14 142 110 009 | 110 010REF КБК 14 142 110 010 | 110 011REF КБК 14 142 110 011 | 110 012REF КБК 14 142 110 012 | 110 013REF КБК 14 142 110 013 | 110 014REF КБК 14 142 110 014 | 110 015REF КБК 14 142 110 015 | 110 016REF КБК 14 142 110 016 | 110 017REF КБК 14 142 110 017 | 110 018REF КБК 14 142 110 018 | 110 019REF КБК 14 142 110 019 | 110 020REF КБК 14 142 110 020 | 110 021REF КБК 14 142 110 021 | 110 022REF КБК 14 142 110 022 | 110 023REF КБК 14 142 110 023 | 110 024REF КБК 14 142 110 024 | 110 025REF КБК 14 142 110 025 | 110 026REF КБК 14 142 110 026 | 110 027REF КБК 14 142 110 027 | 110 028REF КБК 14 142 110 028 | 110 029REF КБК 14 142 110 029 | 110 030REF КБК 14 142 110 030 | 110 031REF КБК 14 142 110 031 | 110 032REF КБК 14 142 110 032 | 110 033REF КБК 14 142 110 033 | 110 034REF КБК 14 142 110 034 | 110 035REF КБК 14 142 110 035 | 110 036REF КБК 14 142 110 036 | 110 037REF КБК 14 142 110 037 | 110 038REF КБК 14 142 110 038 | 110 039REF КБК 14 142 110 039 | 110 040REF КБК 14 142 110 040 | not made | not made | not made |
| 1.25 | 125 005REF КБК 14 142 125 005 | 125 006REF КБК 14 142 125 006 | 125 008REF КБК 14 142 125 008 | 125 009REF КБК 14 142 125 009 | 125 010REF КБК 14 142 125 010 | 125 011REF КБК 14 142 125 011 | 125 012REF КБК 14 142 125 012 | 125 013REF КБК 14 142 125 013 | 125 014REF КБК 14 142 125 014 | 125 015REF КБК 14 142 125 015 | 125 016REF КБК 14 142 125 016 | 125 017REF КБК 14 142 125 017 | 125 018REF КБК 14 142 125 018 | 125 019REF КБК 14 142 125 019 | 125 020REF КБК 14 142 125 020 | 125 021REF КБК 14 142 125 021 | 125 022REF КБК 14 142 125 022 | 125 023REF КБК 14 142 125 023 | 125 024REF КБК 14 142 125 024 | 125 025REF КБК 14 142 125 025 | 125 026REF КБК 14 142 125 026 | 125 027REF КБК 14 142 125 027 | 125 028REF КБК 14 142 125 028 | 125 029REF КБК 14 142 125 029 | 125 030REF КБК 14 142 125 030 | 125 031REF КБК 14 142 125 031 | 125 032REF КБК 14 142 125 032 | 125 033REF КБК 14 142 125 033 | 125 034REF КБК 14 142 125 034 | 125 035REF КБК 14 142 125 035 | 125 036REF КБК 14 142 125 036 | 125 037REF КБК 14 142 125 037 | 125 038REF КБК 14 142 125 038 | 125 039REF КБК 14 142 125 039 | 125 040REF КБК 14 142 125 040 | not made | not made | not made |
| 1.50 | not made | not made | 150 008REF КБК 14 142 150 008 | 150 009REF КБК 14 142 150 009 | 150 010REF КБК 14 142 150 010 | 150 011REF КБК 14 142 150 011 | 150 012REF КБК 14 142 150 012 | 150 013REF КБК 14 142 150 013 | 150 014REF КБК 14 142 150 014 | 150 015REF КБК 14 142 150 015 | 150 016REF КБК 14 142 150 016 | 150 017REF КБК 14 142 150 017 | 150 018REF КБК 14 142 150 018 | 150 019REF КБК 14 142 150 019 | 150 020REF КБК 14 142 150 020 | 150 021REF КБК 14 142 150 021 | 150 022REF КБК 14 142 150 022 | 150 023REF КБК 14 142 150 023 | 150 024REF КБК 14 142 150 024 | 150 025REF КБК 14 142 150 025 | 150 026REF КБК 14 142 150 026 | 150 027REF КБК 14 142 150 027 | 150 028REF КБК 14 142 150 028 | 150 029REF КБК 14 142 150 029 | 150 030REF КБК 14 142 150 030 | 150 031REF КБК 14 142 150 031 | 150 032REF КБК 14 142 150 032 | 150 033REF КБК 14 142 150 033 | 150 034REF КБК 14 142 150 034 | 150 035REF КБК 14 142 150 035 | 150 036REF КБК 14 142 150 036 | 150 037REF КБК 14 142 150 037 | 150 038REF КБК 14 142 150 038 | 150 039REF КБК 14 142 150 039 | 150 040REF КБК 14 142 150 040 | not made | not made | not made |
| 1.75 | not made | not made | 175 008REF КБК 14 142 175 008 | 175 009REF КБК 14 142 175 009 | 175 010REF КБК 14 142 175 010 | 175 011REF КБК 14 142 175 011 | 175 012REF КБК 14 142 175 012 | 175 013REF КБК 14 142 175 013 | 175 014REF КБК 14 142 175 014 | 175 015REF КБК 14 142 175 015 | 175 016REF КБК 14 142 175 016 | 175 017REF КБК 14 142 175 017 | 175 018REF КБК 14 142 175 018 | 175 019REF КБК 14 142 175 019 | 175 020REF КБК 14 142 175 020 | 175 021REF КБК 14 142 175 021 | 175 022REF КБК 14 142 175 022 | 175 023REF КБК 14 142 175 023 | 175 024REF КБК 14 142 175 024 | 175 025REF КБК 14 142 175 025 | 175 026REF КБК 14 142 175 026 | 175 027REF КБК 14 142 175 027 | 175 028REF КБК 14 142 175 028 | 175 029REF КБК 14 142 175 029 | 175 030REF КБК 14 142 175 030 | 175 031REF КБК 14 142 175 031 | 175 032REF КБК 14 142 175 032 | 175 033REF КБК 14 142 175 033 | 175 034REF КБК 14 142 175 034 | 175 035REF КБК 14 142 175 035 | 175 036REF КБК 14 142 175 036 | 175 037REF КБК 14 142 175 037 | 175 038REF КБК 14 142 175 038 | 175 039REF КБК 14 142 175 039 | 175 040REF КБК 14 142 175 040 | not made | not made | not made |
| 2.00 | not made | not made | 200 008REF КБК 14 142 200 008 | 200 009REF КБК 14 142 200 009 | 200 010REF КБК 14 142 200 010 | 200 011REF КБК 14 142 200 011 | 200 012REF КБК 14 142 200 012 | 200 013REF КБК 14 142 200 013 | 200 014REF КБК 14 142 200 014 | 200 015REF КБК 14 142 200 015 | 200 016REF КБК 14 142 200 016 | 200 017REF КБК 14 142 200 017 | 200 018REF КБК 14 142 200 018 | 200 019REF КБК 14 142 200 019 | 200 020REF КБК 14 142 200 020 | 200 021REF КБК 14 142 200 021 | 200 022REF КБК 14 142 200 022 | 200 023REF КБК 14 142 200 023 | 200 024REF КБК 14 142 200 024 | 200 025REF КБК 14 142 200 025 | 200 026REF КБК 14 142 200 026 | 200 027REF КБК 14 142 200 027 | 200 028REF КБК 14 142 200 028 | 200 029REF КБК 14 142 200 029 | 200 030REF КБК 14 142 200 030 | 200 031REF КБК 14 142 200 031 | 200 032REF КБК 14 142 200 032 | 200 033REF КБК 14 142 200 033 | 200 034REF КБК 14 142 200 034 | 200 035REF КБК 14 142 200 035 | 200 036REF КБК 14 142 200 036 | 200 037REF КБК 14 142 200 037 | 200 038REF КБК 14 142 200 038 | 200 039REF КБК 14 142 200 039 | 200 040REF КБК 14 142 200 040 | not made | not made | not made |
| 2.25 | not made | not made | 225 008REF КБК 14 142 225 008 | 225 009REF КБК 14 142 225 009 | 225 010REF КБК 14 142 225 010 | 225 011REF КБК 14 142 225 011 | 225 012REF КБК 14 142 225 012 | 225 013REF КБК 14 142 225 013 | 225 014REF КБК 14 142 225 014 | 225 015REF КБК 14 142 225 015 | 225 016REF КБК 14 142 225 016 | 225 017REF КБК 14 142 225 017 | 225 018REF КБК 14 142 225 018 | 225 019REF КБК 14 142 225 019 | 225 020REF КБК 14 142 225 020 | 225 021REF КБК 14 142 225 021 | 225 022REF КБК 14 142 225 022 | 225 023REF КБК 14 142 225 023 | 225 024REF КБК 14 142 225 024 | 225 025REF КБК 14 142 225 025 | 225 026REF КБК 14 142 225 026 | 225 027REF КБК 14 142 225 027 | 225 028REF КБК 14 142 225 028 | 225 029REF КБК 14 142 225 029 | 225 030REF КБК 14 142 225 030 | 225 031REF КБК 14 142 225 031 | 225 032REF КБК 14 142 225 032 | 225 033REF КБК 14 142 225 033 | 225 034REF КБК 14 142 225 034 | 225 035REF КБК 14 142 225 035 | 225 036REF КБК 14 142 225 036 | 225 037REF КБК 14 142 225 037 | 225 038REF КБК 14 142 225 038 | 225 039REF КБК 14 142 225 039 | 225 040REF КБК 14 142 225 040 | 225 041REF КБК 14 142 225 041 | 225 045REF КБК 14 142 225 045 | 225 049REF КБК 14 142 225 049 |
| 2.50 | not made | not made | 250 008REF КБК 14 142 250 008 | 250 009REF КБК 14 142 250 009 | 250 010REF КБК 14 142 250 010 | 250 011REF КБК 14 142 250 011 | 250 012REF КБК 14 142 250 012 | 250 013REF КБК 14 142 250 013 | 250 014REF КБК 14 142 250 014 | 250 015REF КБК 14 142 250 015 | 250 016REF КБК 14 142 250 016 | 250 017REF КБК 14 142 250 017 | 250 018REF КБК 14 142 250 018 | 250 019REF КБК 14 142 250 019 | 250 020REF КБК 14 142 250 020 | not made | not made | not made | not made | 250 025REF КБК 14 142 250 025 | not made | not made | not made | not made | 250 030REF КБК 14 142 250 030 | not made | not made | 250 033REF КБК 14 142 250 033 | not made | 250 035REF КБК 14 142 250 035 | not made | not made | 250 038REF КБК 14 142 250 038 | not made | 250 040REF КБК 14 142 250 040 | 250 041REF КБК 14 142 250 041 | 250 045REF КБК 14 142 250 045 | 250 049REF КБК 14 142 250 049 |
| 2.75 | not made | not made | 275 008REF КБК 14 142 275 008 | 275 009REF КБК 14 142 275 009 | 275 010REF КБК 14 142 275 010 | 275 011REF КБК 14 142 275 011 | 275 012REF КБК 14 142 275 012 | 275 013REF КБК 14 142 275 013 | 275 014REF КБК 14 142 275 014 | 275 015REF КБК 14 142 275 015 | 275 016REF КБК 14 142 275 016 | 275 017REF КБК 14 142 275 017 | 275 018REF КБК 14 142 275 018 | 275 019REF КБК 14 142 275 019 | 275 020REF КБК 14 142 275 020 | 275 021REF КБК 14 142 275 021 | 275 022REF КБК 14 142 275 022 | 275 023REF КБК 14 142 275 023 | 275 024REF КБК 14 142 275 024 | 275 025REF КБК 14 142 275 025 | 275 026REF КБК 14 142 275 026 | 275 027REF КБК 14 142 275 027 | 275 028REF КБК 14 142 275 028 | 275 029REF КБК 14 142 275 029 | 275 030REF КБК 14 142 275 030 | 275 031REF КБК 14 142 275 031 | 275 032REF КБК 14 142 275 032 | 275 033REF КБК 14 142 275 033 | 275 034REF КБК 14 142 275 034 | 275 035REF КБК 14 142 275 035 | 275 036REF КБК 14 142 275 036 | 275 037REF КБК 14 142 275 037 | 275 038REF КБК 14 142 275 038 | 275 039REF КБК 14 142 275 039 | 275 040REF КБК 14 142 275 040 | 275 041REF КБК 14 142 275 041 | 275 045REF КБК 14 142 275 045 | 275 049REF КБК 14 142 275 049 |
| 3.00 | not made | not made | 300 008REF КБК 14 142 300 008 | 300 009REF КБК 14 142 300 009 | 300 010REF КБК 14 142 300 010 | 300 011REF КБК 14 142 300 011 | 300 012REF КБК 14 142 300 012 | 300 013REF КБК 14 142 300 013 | 300 014REF КБК 14 142 300 014 | 300 015REF КБК 14 142 300 015 | 300 016REF КБК 14 142 300 016 | 300 017REF КБК 14 142 300 017 | 300 018REF КБК 14 142 300 018 | 300 019REF КБК 14 142 300 019 | 300 020REF КБК 14 142 300 020 | 300 021REF КБК 14 142 300 021 | 300 022REF КБК 14 142 300 022 | 300 023REF КБК 14 142 300 023 | 300 024REF КБК 14 142 300 024 | 300 025REF КБК 14 142 300 025 | 300 026REF КБК 14 142 300 026 | 300 027REF КБК 14 142 300 027 | 300 028REF КБК 14 142 300 028 | 300 029REF КБК 14 142 300 029 | 300 030REF КБК 14 142 300 030 | 300 031REF КБК 14 142 300 031 | 300 032REF КБК 14 142 300 032 | 300 033REF КБК 14 142 300 033 | 300 034REF КБК 14 142 300 034 | 300 035REF КБК 14 142 300 035 | 300 036REF КБК 14 142 300 036 | 300 037REF КБК 14 142 300 037 | 300 038REF КБК 14 142 300 038 | 300 039REF КБК 14 142 300 039 | 300 040REF КБК 14 142 300 040 | 300 041REF КБК 14 142 300 041 | 300 045REF КБК 14 142 300 045 | 300 049REF КБК 14 142 300 049 |
| 3.25 | 325 005REF КБК 14 142 325 005 | not made | 325 008REF КБК 14 142 325 008 | 325 009REF КБК 14 142 325 009 | 325 010REF КБК 14 142 325 010 | 325 011REF КБК 14 142 325 011 | 325 012REF КБК 14 142 325 012 | 325 013REF КБК 14 142 325 013 | 325 014REF КБК 14 142 325 014 | 325 015REF КБК 14 142 325 015 | 325 016REF КБК 14 142 325 016 | 325 017REF КБК 14 142 325 017 | 325 018REF КБК 14 142 325 018 | 325 019REF КБК 14 142 325 019 | 325 020REF КБК 14 142 325 020 | 325 021REF КБК 14 142 325 021 | 325 022REF КБК 14 142 325 022 | 325 023REF КБК 14 142 325 023 | 325 024REF КБК 14 142 325 024 | 325 025REF КБК 14 142 325 025 | 325 026REF КБК 14 142 325 026 | 325 027REF КБК 14 142 325 027 | 325 028REF КБК 14 142 325 028 | 325 029REF КБК 14 142 325 029 | 325 030REF КБК 14 142 325 030 | 325 031REF КБК 14 142 325 031 | 325 032REF КБК 14 142 325 032 | 325 033REF КБК 14 142 325 033 | 325 034REF КБК 14 142 325 034 | 325 035REF КБК 14 142 325 035 | 325 036REF КБК 14 142 325 036 | 325 037REF КБК 14 142 325 037 | 325 038REF КБК 14 142 325 038 | 325 039REF КБК 14 142 325 039 | 325 040REF КБК 14 142 325 040 | not made | not made | not made |
| 3.50 | not made | not made | 350 008REF КБК 14 142 350 008 | 350 009REF КБК 14 142 350 009 | 350 010REF КБК 14 142 350 010 | 350 011REF КБК 14 142 350 011 | 350 012REF КБК 14 142 350 012 | 350 013REF КБК 14 142 350 013 | 350 014REF КБК 14 142 350 014 | 350 015REF КБК 14 142 350 015 | 350 016REF КБК 14 142 350 016 | 350 017REF КБК 14 142 350 017 | 350 018REF КБК 14 142 350 018 | 350 019REF КБК 14 142 350 019 | 350 020REF КБК 14 142 350 020 | 350 021REF КБК 14 142 350 021 | 350 022REF КБК 14 142 350 022 | 350 023REF КБК 14 142 350 023 | 350 024REF КБК 14 142 350 024 | 350 025REF КБК 14 142 350 025 | 350 026REF КБК 14 142 350 026 | 350 027REF КБК 14 142 350 027 | 350 028REF КБК 14 142 350 028 | 350 029REF КБК 14 142 350 029 | 350 030REF КБК 14 142 350 030 | 350 031REF КБК 14 142 350 031 | 350 032REF КБК 14 142 350 032 | 350 033REF КБК 14 142 350 033 | 350 034REF КБК 14 142 350 034 | 350 035REF КБК 14 142 350 035 | 350 036REF КБК 14 142 350 036 | 350 037REF КБК 14 142 350 037 | 350 038REF КБК 14 142 350 038 | 350 039REF КБК 14 142 350 039 | 350 040REF КБК 14 142 350 040 | 350 041REF КБК 14 142 350 041 | 350 045REF КБК 14 142 350 045 | 350 049REF КБК 14 142 350 049 |
| 3.75 | 375 005REF КБК 14 142 375 005 | not made | not made | not made | 375 010REF КБК 14 142 375 010 | not made | not made | not made | not made | 375 015REF КБК 14 142 375 015 | not made | not made | not made | not made | 375 020REF КБК 14 142 375 020 | 375 021REF КБК 14 142 375 021 | 375 022REF КБК 14 142 375 022 | 375 023REF КБК 14 142 375 023 | 375 024REF КБК 14 142 375 024 | 375 025REF КБК 14 142 375 025 | 375 026REF КБК 14 142 375 026 | 375 027REF КБК 14 142 375 027 | 375 028REF КБК 14 142 375 028 | 375 029REF КБК 14 142 375 029 | 375 030REF КБК 14 142 375 030 | 375 031REF КБК 14 142 375 031 | 375 032REF КБК 14 142 375 032 | 375 033REF КБК 14 142 375 033 | 375 034REF КБК 14 142 375 034 | 375 035REF КБК 14 142 375 035 | 375 036REF КБК 14 142 375 036 | 375 037REF КБК 14 142 375 037 | 375 038REF КБК 14 142 375 038 | 375 039REF КБК 14 142 375 039 | 375 040REF КБК 14 142 375 040 | not made | not made | not made |
| 4.00 | not made | not made | 400 008REF КБК 14 142 400 008 | 400 009REF КБК 14 142 400 009 | 400 010REF КБК 14 142 400 010 | not made | not made | 400 013REF КБК 14 142 400 013 | 400 014REF КБК 14 142 400 014 | 400 015REF КБК 14 142 400 015 | 400 016REF КБК 14 142 400 016 | 400 017REF КБК 14 142 400 017 | not made | 400 019REF КБК 14 142 400 019 | 400 020REF КБК 14 142 400 020 | 400 021REF КБК 14 142 400 021 | 400 022REF КБК 14 142 400 022 | 400 023REF КБК 14 142 400 023 | 400 024REF КБК 14 142 400 024 | 400 025REF КБК 14 142 400 025 | 400 026REF КБК 14 142 400 026 | 400 027REF КБК 14 142 400 027 | 400 028REF КБК 14 142 400 028 | 400 029REF КБК 14 142 400 029 | 400 030REF КБК 14 142 400 030 | 400 031REF КБК 14 142 400 031 | 400 032REF КБК 14 142 400 032 | 400 033REF КБК 14 142 400 033 | 400 034REF КБК 14 142 400 034 | 400 035REF КБК 14 142 400 035 | 400 036REF КБК 14 142 400 036 | 400 037REF КБК 14 142 400 037 | 400 038REF КБК 14 142 400 038 | 400 039REF КБК 14 142 400 039 | 400 040REF КБК 14 142 400 040 | 400 041REF КБК 14 142 400 041 | 400 045REF КБК 14 142 400 045 | 400 049REF КБК 14 142 400 049 |
| 4.50 | not made | not made | 450 008REF КБК 14 142 450 008 | 450 009REF КБК 14 142 450 009 | 450 010REF КБК 14 142 450 010 | not made | not made | 450 013REF КБК 14 142 450 013 | 450 014REF КБК 14 142 450 014 | 450 015REF КБК 14 142 450 015 | 450 016REF КБК 14 142 450 016 | 450 017REF КБК 14 142 450 017 | not made | 450 019REF КБК 14 142 450 019 | 450 020REF КБК 14 142 450 020 | not made | not made | not made | 450 024REF КБК 14 142 450 024 | 450 025REF КБК 14 142 450 025 | not made | not made | not made | 450 029REF КБК 14 142 450 029 | 450 030REF КБК 14 142 450 030 | not made | 450 032REF КБК 14 142 450 032 | 450 033REF КБК 14 142 450 033 | not made | 450 035REF КБК 14 142 450 035 | not made | 450 037REF КБК 14 142 450 037 | 450 038REF КБК 14 142 450 038 | not made | 450 040REF КБК 14 142 450 040 | 450 041REF КБК 14 142 450 041 | 450 045REF КБК 14 142 450 045 | 450 049REF КБК 14 142 450 049 |
| 5.00 | not made | not made | not made | not made | 500 010REF КБК 14 142 500 010 | not made | not made | not made | not made | 500 015REF КБК 14 142 500 015 | not made | not made | not made | not made | 500 020REF КБК 14 142 500 020 | not made | not made | not made | not made | not made | not made | not made | not made | not made | not made | not made | not made | not made | not made | not made | not made | not made | not made | not made | not made | not made | not made | not made |
Ask a manager about availability.
Pressure and diameter
Choose a balloon diameter and a pressure to see the diameter it reaches. Values from the table in the instructions for use.
Nominal diameter, mm
—mm
Table from the instructions for use
| atm | 1.00 | 1.10 | 1.25 | 1.50 | 1.75 | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 3.75 | 4.00 | 4.50 | 5.00 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 1.01 | 1.11 | 1.24 | 1.49 | 1.75 | 1.98 | 2.24 | 2.47 | 2.74 | 2.99 | 3.25 | 3.50 | 3.75 | 3.99 | 4.49 | 5.01 |
| 7 | 1.02 | 1.12 | 1.26 | 1.51 | 1.77 | 2.01 | 2.27 | 2.50 | 2.77 | 3.01 | 3.29 | 3.53 | 3.80 | 4.02 | 4.53 | 5.08 |
| 8 | 1.03 | 1.13 | 1.27 | 1.52 | 1.80 | 2.04 | 2.30 | 2.53 | 2.81 | 3.03 | 3.33 | 3.56 | 3.83 | 4.05 | 4.56 | 5.14 |
| 9 | 1.04 | 1.15 | 1.28 | 1.54 | 1.84 | 2.07 | 2.33 | 2.56 | 2.84 | 3.04 | 3.37 | 3.58 | 3.87 | 4.09 | 4.60 | 5.20 |
| 10 | 1.06 | 1.16 | 1.30 | 1.55 | 1.87 | 2.09 | 2.36 | 2.58 | 2.86 | 3.06 | 3.39 | 3.60 | 3.91 | 4.12 | 4.63 | 5.24 |
| 11 | 1.07 | 1.18 | 1.31 | 1.56 | 1.90 | 2.11 | 2.38 | 2.60 | 2.87 | 3.08 | 3.42 | 3.63 | 3.96 | 4.14 | 4.67 | 5.27 |
| 12 | 1.08 | 1.20 | 1.32 | 1.57 | 1.92 | 2.13 | 2.41 | 2.61 | 2.90 | 3.11 | 3.45 | 3.65 | 3.98 | 4.17 | 4.70 | 5.31 |
| 13 | 1.09 | 1.21 | 1.34 | 1.59 | 1.94 | 2.15 | 2.43 | 2.63 | 2.92 | 3.12 | 3.47 | 3.67 | 3.99 | 4.19 | 4.73 | 5.34 |
| 14 | 1.10 | 1.23 | 1.36 | 1.60 | 1.97 | 2.18 | 2.44 | 2.64 | 2.93 | 3.14 | 3.49 | 3.69 | 4.02 | 4.22 | 4.76 | 5.37 |
| 15 | 1.11 | 1.25 | 1.37 | 1.61 | 1.99 | 2.19 | 2.46 | 2.66 | 2.95 | 3.16 | 3.51 | 3.72 | 4.04 | 4.24 | 4.79 | 5.40 |
| 16 | 1.13 | 1.27 | 1.38 | 1.63 | 2.02 | 2.21 | 2.48 | 2.68 | 2.97 | 3.18 | 3.53 | 3.74 | 4.07 | 4.27 | 4.82 | 5.43 |
| 17 | 1.15 | 1.29 | 1.40 | 1.64 | 2.04 | 2.23 | 2.50 | 2.69 | 2.99 | 3.20 | 3.56 | 3.76 | 4.10 | 4.30 | 4.86 | 5.46 |
| 18 | 1.16 | 1.31 | 1.41 | 1.66 | 2.05 | 2.24 | 2.51 | 2.71 | 3.01 | 3.23 | 3.58 | 3.77 | 4.12 | 4.32 | 4.89 | 5.50 |
| 19 | 1.17 | 1.32 | 1.43 | 1.68 | 2.06 | 2.26 | 2.54 | 2.73 | 3.03 | 3.25 | 3.61 | 3.78 | 4.15 | 4.34 | 4.92 | 5.54 |
| 20 | 1.18 | 1.33 | 1.45 | 1.70 | 2.07 | 2.29 | 2.57 | 2.75 | 3.05 | 3.27 | 3.64 | 3.80 | 4.18 | 4.36 | 4.96 | 5.59 |
Increase pressure in 2 atm steps with 10-second pauses and never exceed the rated burst pressure on the label.
Source: RAMA and NC RAMA instructions for use, table 3 (registration certificate РЗН 2021/13781, 03.02.2025)
Specifications
| Balloon diameter | 1 – 5 mm |
|---|---|
| Balloon length | 5 – 49 mm |
| Effective catheter length | 142 cm |
| Mean deflation time | 3 s (no more than 5 s from reaching rated burst pressure) |
| Nominal pressure | 6 atm |
| Rated burst pressure | 16 atm |
| Guidewire compatibility | 0.014″ |
| Guiding catheter compatibility | 5F minimum |
| Marker material | Pt-Ir |
| Single-marker versions | КБК 14 142 125 110.1, 125 115.1, 150 110.1, 150 015.1: one radiopaque marker at the balloon centre |
