NASH+ — Everolimus-eluting coronary stent

65 µm strutsUltra-thin 65 µm stent struts.

everolimus coatingThin 3 µm bioresorbable polymer coating with controlled drug release.

Nylon/Pebax balloonNominal 8 atm, rated burst 16 atm.

Pt-Ir markersTwo platinum-iridium radiopaque markers.

0.014″ guidewireCompatible with guidewires up to 0.014″ and 5F catheters.

Home
Products
NASH+

Drug-eluting stent New

NASH+

Name: NASH+
Brand: RK Group

Everolimus-eluting coronary stent

2.25–5Diameter, mm

8–48Length, mm

EverolimusCoating

Request a quote Find a size

Reg. cert. РЗН 2025/25736 dated 24.06.2025

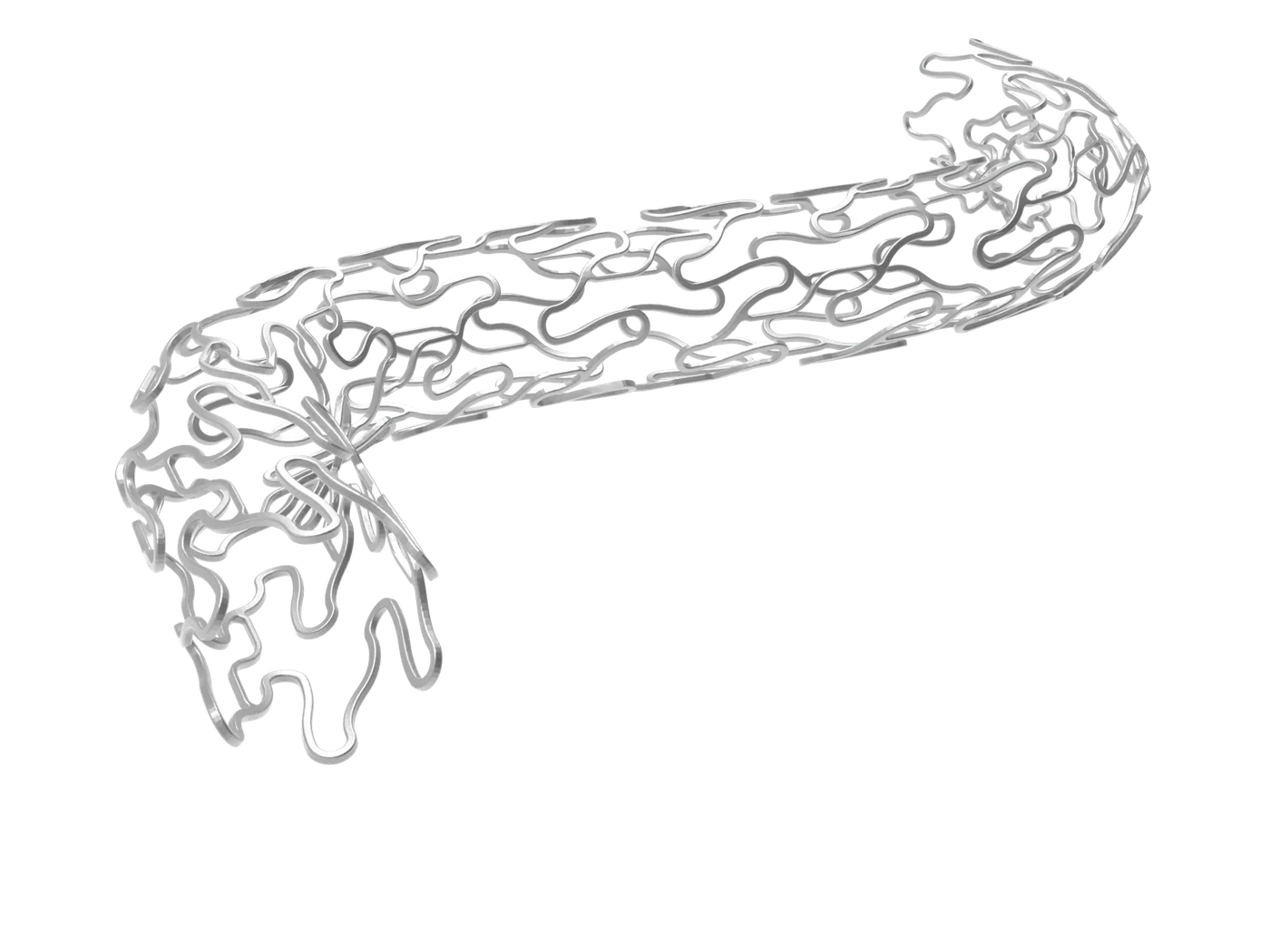

Drag to rotate · schematic model

Description

The NASH+ everolimus-eluting coronary stent is intended to increase the lumen diameter of the coronary vessels in patients with symptomatic coronary artery disease, including patients with acute myocardial infarction and patients with concomitant diabetes mellitus, caused by de novo focal lesions of the native coronary artery.

Ultra-thin struts (65 µm) reduce the risk of late stent thrombosis
Ultra-low crossing profile (~1.0 mm) for improved flexibility and deliverability
Increased radial strength gives reliable vessel-wall support and reduces recoil (<5%) for a stable result after implantation
A thin 3 µm bioresorbable polymer coating reduces the risk of vessel inflammation
The coating technology keeps the polymer intact after stent expansion and ensures controlled drug release

Contraindications apply. Read the instructions for use or consult a specialist.

Size finder

Diameter, mm

Length, mm

128 sizes in the range. Ask a manager about availability.

Size range

in the rangenot made

Size range: stent diameter in rows, length in columns
Ø, mmREF NSP …	Length, mm
Ø, mmREF NSP …	8	10	12	13	15	16	18	20	24	28	32	36	40	42	44	48
2.25	225 008REF NSP 225 008	225 010REF NSP 225 010	225 012REF NSP 225 012	225 013REF NSP 225 013	225 015REF NSP 225 015	225 016REF NSP 225 016	225 018REF NSP 225 018	225 020REF NSP 225 020	225 024REF NSP 225 024	225 028REF NSP 225 028	225 032REF NSP 225 032	225 036REF NSP 225 036	225 040REF NSP 225 040	225 042REF NSP 225 042	225 044REF NSP 225 044	225 048REF NSP 225 048
2.50	250 008REF NSP 250 008	250 010REF NSP 250 010	250 012REF NSP 250 012	250 013REF NSP 250 013	250 015REF NSP 250 015	250 016REF NSP 250 016	250 018REF NSP 250 018	250 020REF NSP 250 020	250 024REF NSP 250 024	250 028REF NSP 250 028	250 032REF NSP 250 032	250 036REF NSP 250 036	250 040REF NSP 250 040	250 042REF NSP 250 042	250 044REF NSP 250 044	250 048REF NSP 250 048
2.75	275 008REF NSP 275 008	275 010REF NSP 275 010	275 012REF NSP 275 012	275 013REF NSP 275 013	275 015REF NSP 275 015	275 016REF NSP 275 016	275 018REF NSP 275 018	275 020REF NSP 275 020	275 024REF NSP 275 024	275 028REF NSP 275 028	275 032REF NSP 275 032	275 036REF NSP 275 036	275 040REF NSP 275 040	275 042REF NSP 275 042	275 044REF NSP 275 044	275 048REF NSP 275 048
3.00	300 008REF NSP 300 008	300 010REF NSP 300 010	300 012REF NSP 300 012	300 013REF NSP 300 013	300 015REF NSP 300 015	300 016REF NSP 300 016	300 018REF NSP 300 018	300 020REF NSP 300 020	300 024REF NSP 300 024	300 028REF NSP 300 028	300 032REF NSP 300 032	300 036REF NSP 300 036	300 040REF NSP 300 040	300 042REF NSP 300 042	300 044REF NSP 300 044	300 048REF NSP 300 048
3.50	350 008REF NSP 350 008	350 010REF NSP 350 010	350 012REF NSP 350 012	350 013REF NSP 350 013	350 015REF NSP 350 015	350 016REF NSP 350 016	350 018REF NSP 350 018	350 020REF NSP 350 020	350 024REF NSP 350 024	350 028REF NSP 350 028	350 032REF NSP 350 032	350 036REF NSP 350 036	350 040REF NSP 350 040	350 042REF NSP 350 042	350 044REF NSP 350 044	350 048REF NSP 350 048
4.00	400 008REF NSP 400 008	400 010REF NSP 400 010	400 012REF NSP 400 012	400 013REF NSP 400 013	400 015REF NSP 400 015	400 016REF NSP 400 016	400 018REF NSP 400 018	400 020REF NSP 400 020	400 024REF NSP 400 024	400 028REF NSP 400 028	400 032REF NSP 400 032	400 036REF NSP 400 036	400 040REF NSP 400 040	400 042REF NSP 400 042	400 044REF NSP 400 044	400 048REF NSP 400 048
4.50	450 008REF NSP 450 008	450 010REF NSP 450 010	450 012REF NSP 450 012	450 013REF NSP 450 013	450 015REF NSP 450 015	450 016REF NSP 450 016	450 018REF NSP 450 018	450 020REF NSP 450 020	450 024REF NSP 450 024	450 028REF NSP 450 028	450 032REF NSP 450 032	450 036REF NSP 450 036	450 040REF NSP 450 040	450 042REF NSP 450 042	450 044REF NSP 450 044	450 048REF NSP 450 048
5.00	500 008REF NSP 500 008	500 010REF NSP 500 010	500 012REF NSP 500 012	500 013REF NSP 500 013	500 015REF NSP 500 015	500 016REF NSP 500 016	500 018REF NSP 500 018	500 020REF NSP 500 020	500 024REF NSP 500 024	500 028REF NSP 500 028	500 032REF NSP 500 032	500 036REF NSP 500 036	500 040REF NSP 500 040	500 042REF NSP 500 042	500 044REF NSP 500 044	500 048REF NSP 500 048

Ask a manager about availability.

Specifications

Stent material	L605 cobalt-chromium alloy
Drug coating	Everolimus
Stent diameter	2.25 – 5 mm
Stent length	8 – 48 mm
Nominal pressure (NP)	8 atm
Rated burst pressure (RBP)	Ø 2.25–4.00 mm: 16 atm; Ø 4.50–5.00 mm: 14 atm
Guidewire compatibility	max 0.014″
Catheter compatibility	5F (Ø up to 4.00 mm); 6F (Ø 4.50–5.00 mm)
Radiopaque markers	Pt-Ir, 2 pcs
Balloon material	Polyamide
Usable length of the stent system	1414 ± 50 mm
Strut thickness	0.0625 ± 0.0075 mm (Ø 2.25–3.50 mm); 0.0650 ± 0.0075 mm (Ø 4.00–5.00 mm)
Delivery system outer diameter	0.57–1.40 mm
Working diameter range	D × 0.90 to D × 1.05 (D = nominal diameter)
Coating polymer	Lactide-based polymer blend
Drug load	28.8–373.2 µg everolimus depending on size (±10%)
Marker width	0.80 ± 0.05 mm
MRI	MR conditional: up to 3 T, spatial gradient up to 720 G/cm, SAR up to 3.0 W/kg for 15 min
