PUT NIY — Sirolimus-eluting coronary stent on a delivery system

L605 cobalt-chromiumOpen-cell stent laser-cut from L605 cobalt-chromium alloy.

Sirolimus coatingSirolimus with a biostable polymer; balanced strut thickness.

Pt-Ir markersTwo radiopaque markers show the stent positioning limits under fluoroscopy.

Hydrax coatingThe hydrophilic catheter coating eases passage through the arteries.

RX delivery systemRapid-exchange balloon catheter, 142 cm effective length.

0.014″ guidewireCompatible with 0.014″ guidewires and 5F guiding catheters.

Home
Products
PUT NIY

Drug-eluting stent

PUT NIY

Name: PUT NIY
Brand: RK Group

Sirolimus-eluting coronary stent on a delivery system

2–4.50Diameter, mm

8–48Length, mm

SirolimusCoating

Request a quote Find a size

Reg. cert. РЗН 2020/12264 dated 09.10.2020

Drag to rotate · schematic model

Description

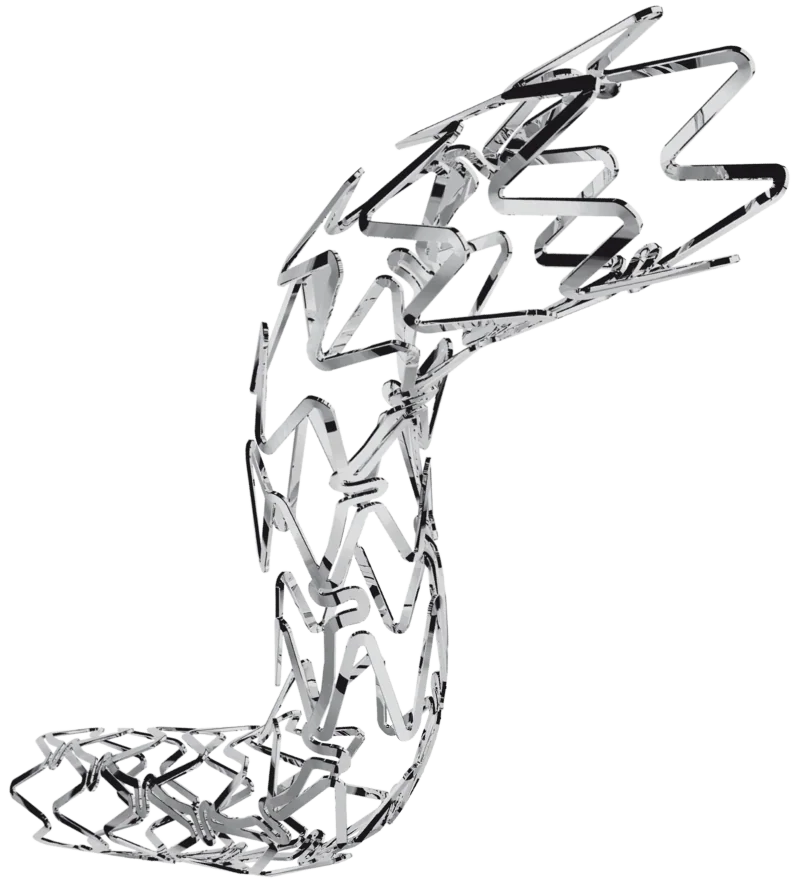

The PUT NIY coronary stent system is an open-cell stent made of L605 cobalt-chromium alloy, coated with sirolimus and a biostable polymer.

The stent is laser-cut from metal tubing and surface-finished to a smooth, polished surface.

Its cells are joined axially by links to give different longitudinal configurations; the number of cells around the circumference sets the diameters the stent can be expanded to.

The stent delivery system is a rapid-exchange (RX) balloon catheter with an inflatable balloon at its distal end.

Two radiopaque markers show the stent's positioning limits for visual control under fluoroscopy.

The catheter has a Hydrax hydrophilic coating that eases its passage through the arteries.

Balanced strut thickness — a balance of radial stiffness and flexibility
Optimised concentration of drug and fluorinated polymer — controlled release and high endothelialisation

Contraindications apply. Read the instructions for use or consult a specialist.

Size finder

Diameter, mm

Length, mm

107 sizes in the range. Ask a manager about availability.

Size range

in the rangenot made

Size range: stent diameter in rows, length in columns
Ø, mm	Length, mm
Ø, mm	8	9	13	14	16	19	24	29	32	34	37	39	40	44	48
2.00	not made	available	available	available	available	available	available	available	not made	available	not made	available	not made	not made	not made
2.25	available	available	available	available	available	available	available	available	available	available	available	available	available	not made	not made
2.50	available	available	available	available	available	available	available	available	available	available	available	available	available	available	available
2.75	available	available	available	available	available	available	available	available	available	available	available	available	available	available	available
3.00	available	available	available	available	available	available	available	available	available	available	available	available	available	available	available
3.50	available	available	available	available	available	available	available	available	available	available	available	available	available	available	available
4.00	available	available	available	available	available	available	available	available	available	available	available	available	available	not made	not made
4.50	available	not made	available	available	available	available	available	available	available	available	available	available	available	not made	not made

Ask a manager about availability.

Specifications

Stent material	L605 cobalt-chromium alloy
Drug coating	Sirolimus
Stent diameter	2 – 4.50 mm
Stent length	8 – 48 mm
Effective catheter length	142 cm
Mean inflation time	3 s
Nominal pressure	Ø 2.00–2.50 mm — 11 atm; Ø 2.75–3.50 mm — 10 atm; Ø 4.00–4.50 mm — 9 atm
Rated burst pressure	16 atm
Catheter coating	Hydrophilic, Hydrax
Guidewire compatibility	0.014″
Guiding catheter compatibility	5F minimum
Marker material	Pt-Ir
